01
Height range
The listed working-height range is 700–1000 mm.
Operating Tables

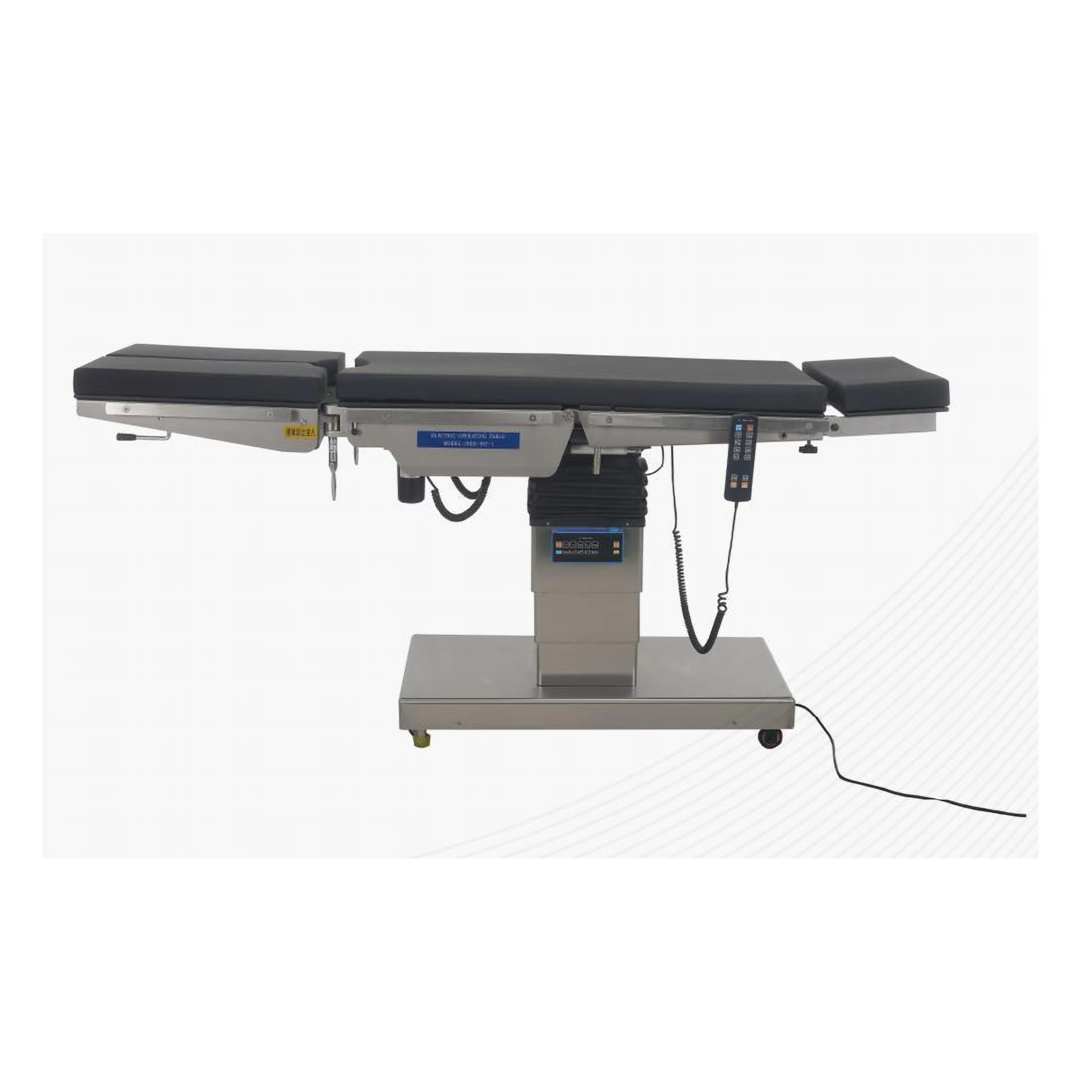

YK-OT3011 Electric Operating Table
A 2125 × 550 mm electric operating table with a 700–1000 mm listed height range, 300 mm longitudinal movement and a kidney-bridge elevation of at least 120 mm.
Configuration At A Glance
02
Longitudinal travel
The listed backward/forward movement figure is 300 mm.
03
Section positioning
The leg section lists a 180° opening angle, with the head, back and kidney bridge specified separately.
Review The Layout For Your Room
This configuration has the higher listed working-height range and longer longitudinal movement of the two 550 mm-wide models in this selection. Check the lowest working height against the team’s access requirements and confirm clearance throughout the complete movement envelope, including attached supports and floor controls.
YK-OT3011 Specifications
Use the figures below to compare this configuration. Confirm the final drawing, measurement references and operating conditions with your quotation.
| Overall length / width | 2125 × 550 mm |
|---|---|
| Height range | 700–1000 mm |
| Trendelenburg / reverse Trendelenburg | ≥25° / ≥25° |
| Lateral tilt | ≥15° |
| Head plate up / down | +45° / −90° |
| Back section up / down | 75° / 20° |
| Leg section raised / lowered | 15° / 90° from horizontal |
| Leg-section opening angle | 180° |
| Longitudinal movement | 300 mm |
| Kidney-bridge elevation | ≥120 mm |
| Permitted load and power supply | Confirm for the supplied configuration |
Before You Confirm The Order
Build the order around the exact equipment set and the space where it will be installed. Record the agreed configuration so that inspection, delivery and setup use the same requirements.
- 01
Confirm the permitted patient and accessory loads in every required position.
- 02
Approve the head, arm, leg and restraint supports, accessory-rail dimensions and delivered component list.
- 03
Confirm tabletop materials, mattress thickness, cleaning compatibility and any imaging-clearance requirements.
- 04
Agree controls, installation, operating instructions, maintenance, packing dimensions and replacement parts.
Compare Related Configurations
YK-OT3010 Electric Operating Table
An electric operating table with a 2125 × 550 mm listed top layout, a 680–930 mm height range and 250 mm longitudinal movement. Compare its positioning ranges and accessory setup before ordering.
Compare Specifications →YK-OT3012 Electric Operating Table
A 2100 × 480 mm electric operating table with a 680–930 mm listed height range, split leg sections and a detachable foot-plate arrangement. Review its support layout and positioning requirements.
Compare Specifications →YK-OT3013 Multipurpose Operating Table
A multipurpose operating-table configuration with a 2100 × 480 mm listed size, a 720–920 mm height range and a 120 mm kidney-bridge elevation. Confirm the actuation and support arrangement.
Compare Specifications →Questions About YK-OT3011
Request Your YK-OT3011 Configuration Quote
Send the model, quantities, destination and required setup. We can prepare a configuration-based quotation for your project or distribution order, with packing and documentation requirements agreed before dispatch.
