How does YK-OT3010 compare with YK-OT3011?

Both list a 2125 × 550 mm layout. YK-OT3010 lists 680–930 mm working height and 250 mm longitudinal movement; YK-OT3011 lists 700–1000 mm and 300 mm respectively.

Is imaging compatibility established?

Confirm tabletop material, radiolucent area, column clearance and compatibility with the proposed imaging equipment. The movement and dimension figures alone do not establish compatibility.

Are load and electrical ratings available?

Request the permitted loads, movement restrictions, voltage, frequency and final control configuration with the quotation.

What should I send for a YK-OT3010 quotation?

Send the model, quantities, destination country, required supports and controls, documentation needs and delivery timing. The quotation should define the delivered configuration, packing, lead time, warranty and spare-parts scope.

Operating Tables

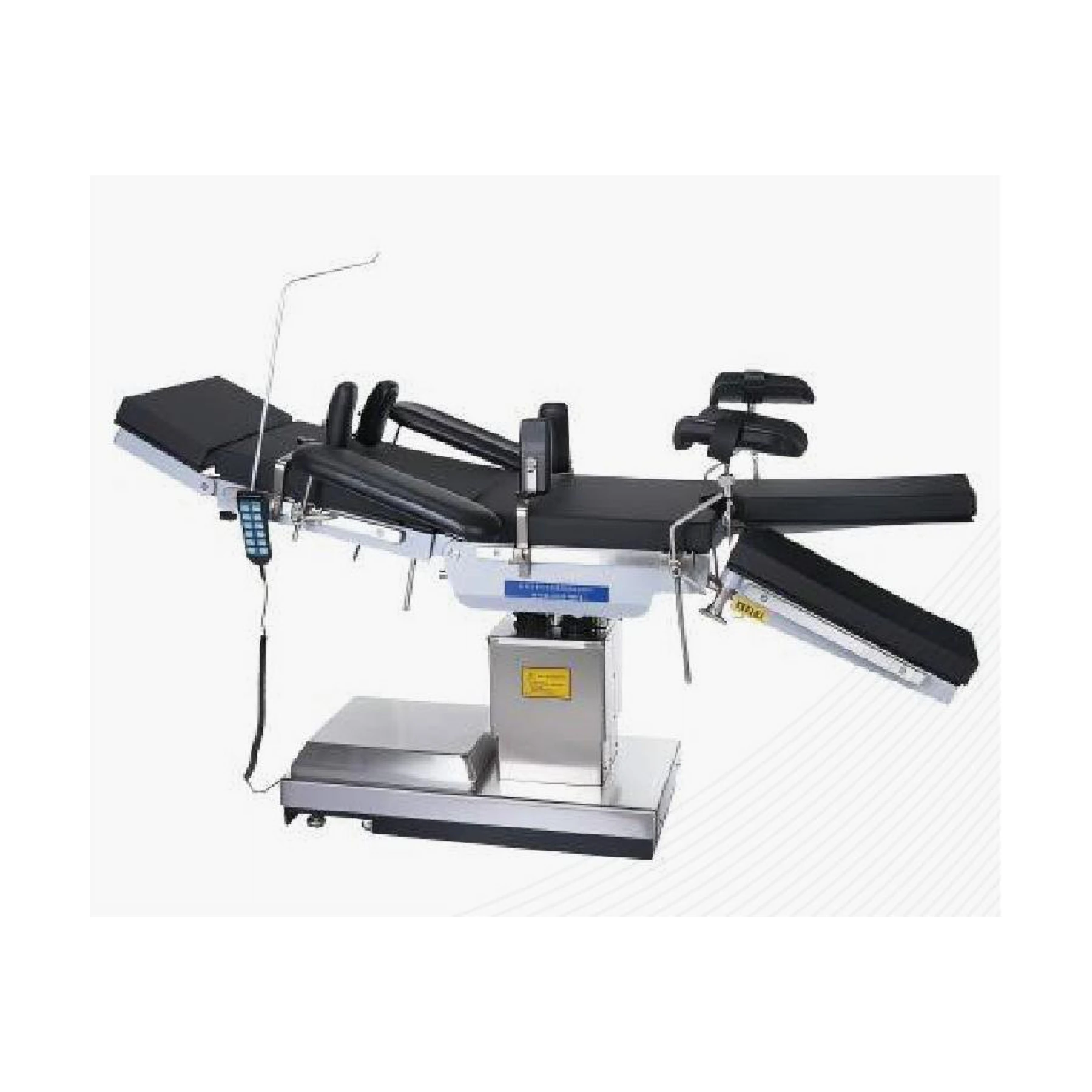

YK-OT3010 Electric Operating Table

An electric operating table with a 2125 × 550 mm listed top layout, a 680–930 mm height range and 250 mm longitudinal movement. Compare its positioning ranges and accessory setup before ordering.

View Specifications

Configuration At A Glance

Longitudinal positioning

The listed backward/forward movement figure is 250 mm; confirm travel reference and operating limits.

Height adjustment

The listed height range is 680–930 mm.

Kidney bridge

The listed kidney-bridge elevation is at least 80 mm; confirm the supplied mechanism and permitted conditions.

Review The Layout For Your Room

YK-OT3010 is the 550 mm-wide configuration with 250 mm listed fore-and-aft movement in this group. Compare the movement required around the table column, the usable support area and the minimum working height. Confirm tabletop construction and imaging access against the equipment layout used by your project.

YK-OT3010 Specifications

Use the figures below to compare this configuration. Confirm the final drawing, measurement references and operating conditions with your quotation.

YK-OT3010 Electric Operating Table model specifications
Overall length / width	2125 × 550 mm
Height range	680–930 mm
Trendelenburg / reverse Trendelenburg	≥20° / ≥15°
Lateral tilt	≥15°
Head plate up / down	+45° / −90°
Back section up / down	75° / 10°
Leg section raised / lowered	15° / 90° from horizontal
Leg-section opening angle	180°
Longitudinal movement	250 mm
Kidney-bridge elevation	≥80 mm
Permitted load and power supply	Confirm for the supplied configuration

Before You Confirm The Order

Build the order around the exact equipment set and the space where it will be installed. Record the agreed configuration so that inspection, delivery and setup use the same requirements.

01
Confirm the permitted patient and accessory loads in every required position.
02
Approve the head, arm, leg and restraint supports, accessory-rail dimensions and delivered component list.
03
Confirm tabletop materials, mattress thickness, cleaning compatibility and any imaging-clearance requirements.
04
Agree controls, installation, operating instructions, maintenance, packing dimensions and replacement parts.

Compare Related Configurations

YK-OT3011 Electric Operating Table

A 2125 × 550 mm electric operating table with a 700–1000 mm listed height range, 300 mm longitudinal movement and a kidney-bridge elevation of at least 120 mm.

Compare Specifications →

YK-OT3012 Electric Operating Table

A 2100 × 480 mm electric operating table with a 680–930 mm listed height range, split leg sections and a detachable foot-plate arrangement. Review its support layout and positioning requirements.

Compare Specifications →

YK-OT3013 Multipurpose Operating Table

A multipurpose operating-table configuration with a 2100 × 480 mm listed size, a 720–920 mm height range and a 120 mm kidney-bridge elevation. Confirm the actuation and support arrangement.

Compare Specifications →

Operating Tables →Clinic Furniture →

Questions About YK-OT3010

Request Your YK-OT3010 Configuration Quote

Send the model, quantities, destination and required setup. We can prepare a configuration-based quotation for your project or distribution order, with packing and documentation requirements agreed before dispatch.
