Patient Transfer Equipment

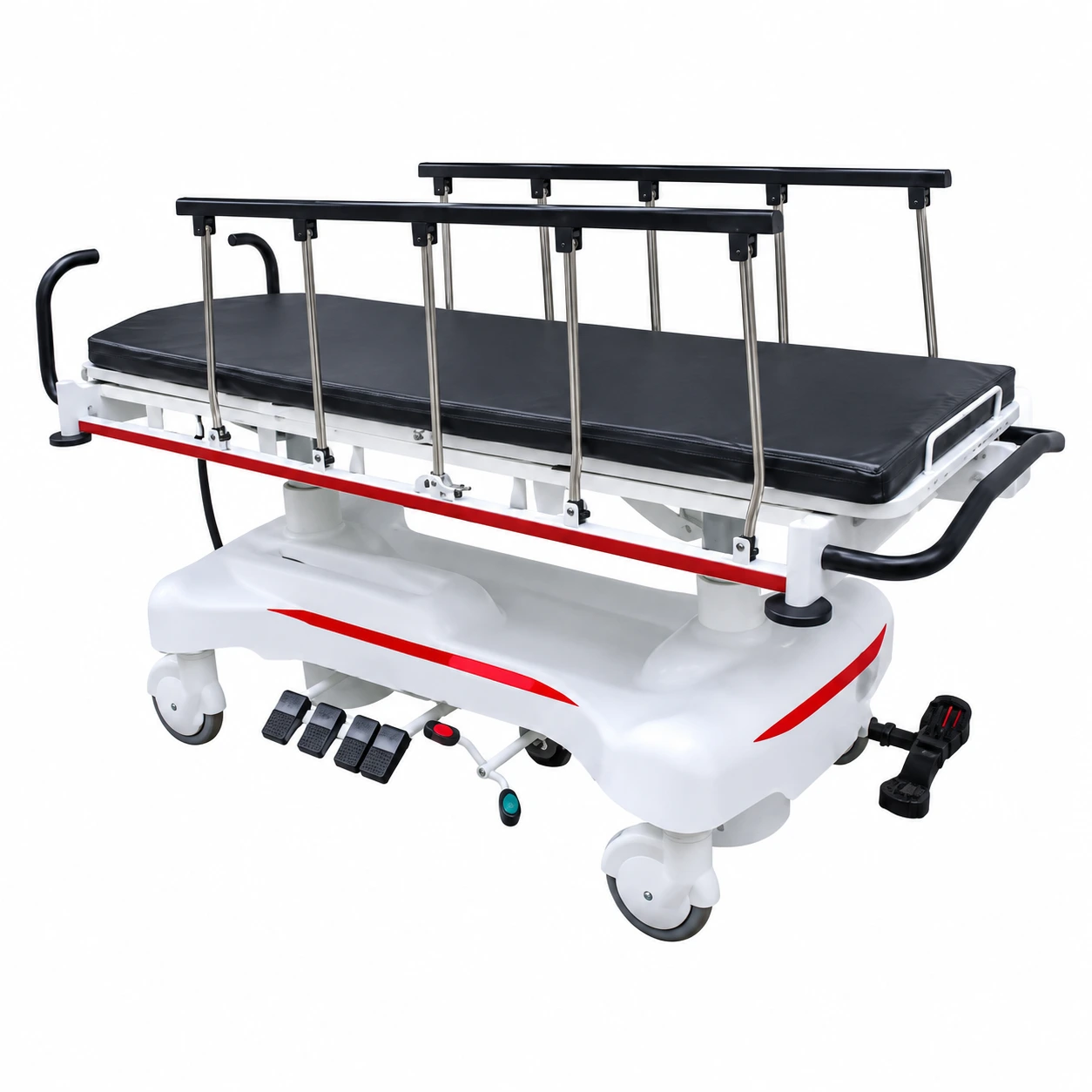

YK-TS005 Hydraulic Stretcher
A hydraulic stretcher with folding stainless steel rails, a black padded surface and a coated galvanized-steel-tube structure. Compare its 610–930 mm height range, backrest adjustment and tilt specifications.
Product Configuration
01
Hydraulic height adjustment
02
Adjustable backrest and tilt
03
Folding stainless steel side rails
04
Central braking and directional caster
YK-TS005 Specifications
| Overall Size (L × W × H) | 2120 × 800 × 610–930 mm |
|---|---|
| Height Range | 610–930 mm |
| Backrest Adjustment | 0–85° |
| Trendelenburg / Reverse Tilt | 0–12° |
| Frame | Galvanized steel tube with electrostatic coating |
| Side Rails | Folding stainless steel rails |
| Base Cover | PP |
| Controls | Hydraulic lift; foot pedals on both sides |
| Brake And Wheel Layout | Central brake system; directional caster; diameter requires confirmation |
| Mattress | 50 mm foam mattress with PU surface; inclusion requires confirmation |
| Imaging Configuration | X-ray-translucent backboard with cassette arrangement; full-platform option requires confirmation |
Confirm Configuration And Handling
Confirm permitted patient load, movement under load, hydraulic components and caster diameter before ordering. Confirm the X-ray-translucent area, cassette interface and imaging-equipment compatibility; a full sleeping-board imaging configuration is an optional item. Confirm mattress, IV stand, drainage hook, oxygen-cylinder holder, rail locks and supplied accessories. Agree cleaning, maintenance and operating documentation.
Plan Your Project Order
Confirm model quantities, final packed dimensions and weights, handling and stacking limits, room access and handling requirements and required documents. MOQ, production lead time, warranty and spare-parts scope are quotation items.
Model Questions
Request Your YK-TS005 Quote
Send quantity, destination, accessories and delivery timing for this exact configuration.
