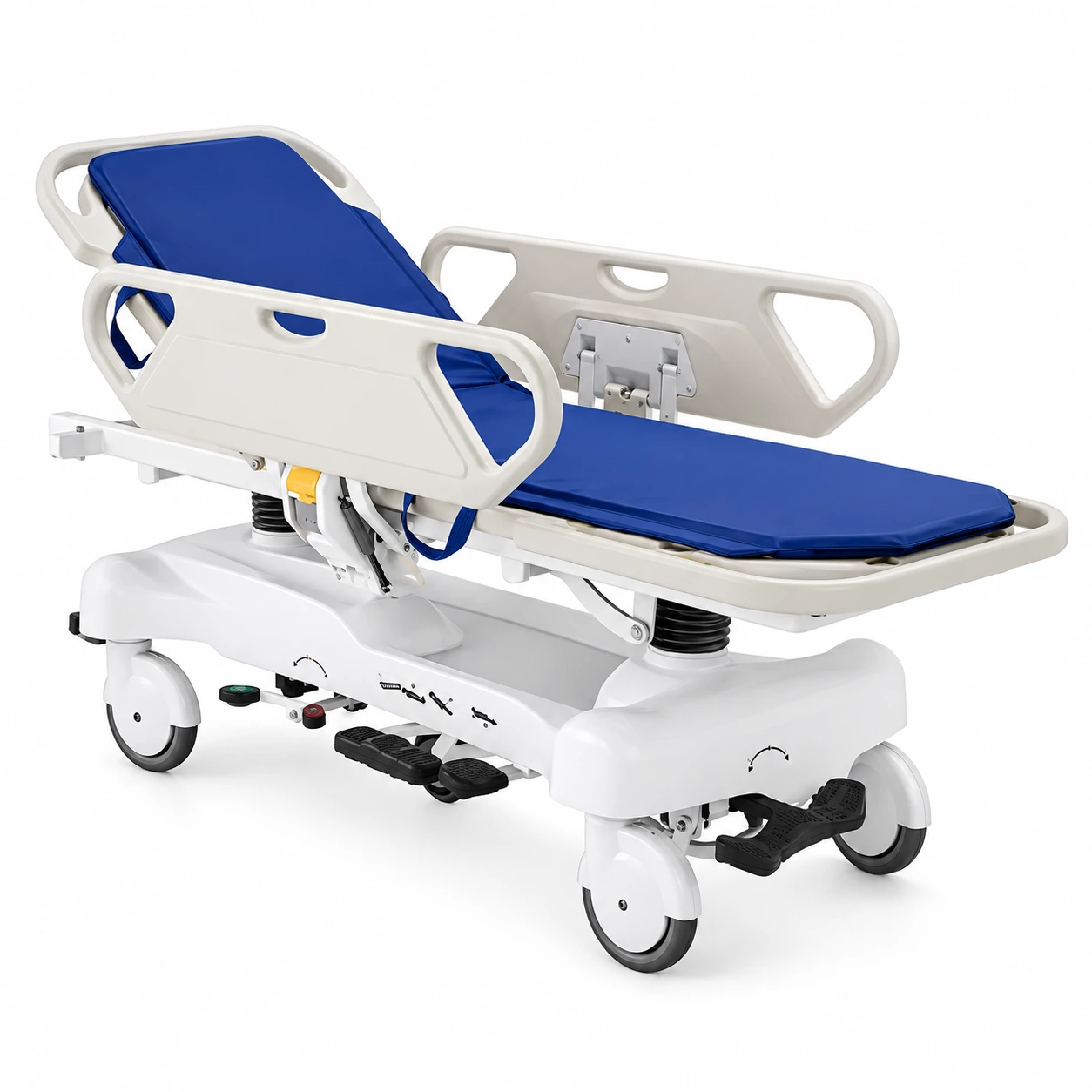

YK-TS003 Hydraulic Patient Transfer Trolley
A hydraulic transfer trolley with a blue padded platform, folding ABS side rails and foot-pedal controls on both sides. Compare its 630–930 mm height range, backrest adjustment and tilt specifications.
Product Configuration
01
Hydraulic height adjustment
02
Adjustable backrest and tilt
03
Folding ABS side rails
04
Central braking and directional caster
YK-TS003 Specifications
| Overall Size (L × W × H) | 1930 × 700 × 630–930 mm |
|---|---|
| Height Range | 630–930 mm |
| Backrest Adjustment | 0–85° |
| Trendelenburg / Reverse Tilt | 0–12° |
| Platform Material | PP |
| Side Rails | Folding ABS rails |
| Controls | Hydraulic lift; foot pedals on both sides |
| Brake And Wheel Layout | Central brake system; directional caster |
| Mattress | 20 mm canvas-surface mattress; inclusion requires confirmation |
Confirm Configuration And Handling
Confirm permitted patient load, movement under load, caster diameter, braking arrangement, hydraulic components and cleaning instructions. Confirm whether the mattress, IV stand, drainage hook and base oxygen-cylinder holder are included. Agree the cylinder size, accessory compatibility, rail locks and operation instructions before ordering.
Plan Your Project Order
Confirm model quantities, final packed dimensions and weights, handling and stacking limits, room access and handling requirements and required documents. MOQ, production lead time, warranty and spare-parts scope are quotation items.
Model Questions
Request Your YK-TS003 Quote
Send quantity, destination, accessories and delivery timing for this exact configuration.
