What distinguishes YK-TR002 from YK-TR001?

Compare the console-and-mast layout and the angulation specification. YK-TR002 lists endpoint tolerances of ±2°; obtain the final dimensional and control drawings for both models.

Are room size and load figures established?

Overall dimensions and permitted patient load require confirmation for the supplied configuration. Do not derive either from the product image.

Are the stool and neck-support components included?

Confirm the stool, suspended supports, restraints and any other accessories individually. Agree the clinical instructions and configuration before procurement.

What should I send for a YK-TR002 quotation?

Send the model, quantities, destination country, required supports and controls, documentation needs and delivery timing. The quotation should define the delivered configuration, packing, lead time, warranty and spare-parts scope.

Traction Tables

YK-TR002 Traction Table

A traction-table layout with a console housing beside the platform and a tall cervical-support mast. Compare its room-access arrangement, waist angulation specification and supplied supports with YK-TR001.

View Specifications

Configuration At A Glance

Alternative console position

Compare the console-and-mast arrangement with YK-TR001 around room access and operator position.

Listed motion figures

Waist and neck drive distances are listed separately at 0–200 mm and 0–250 mm.

Angulation specification

The listed waist endpoints are −5° ±2° and 28° ±2°; confirm their reference and verification method.

Review The Layout For Your Room

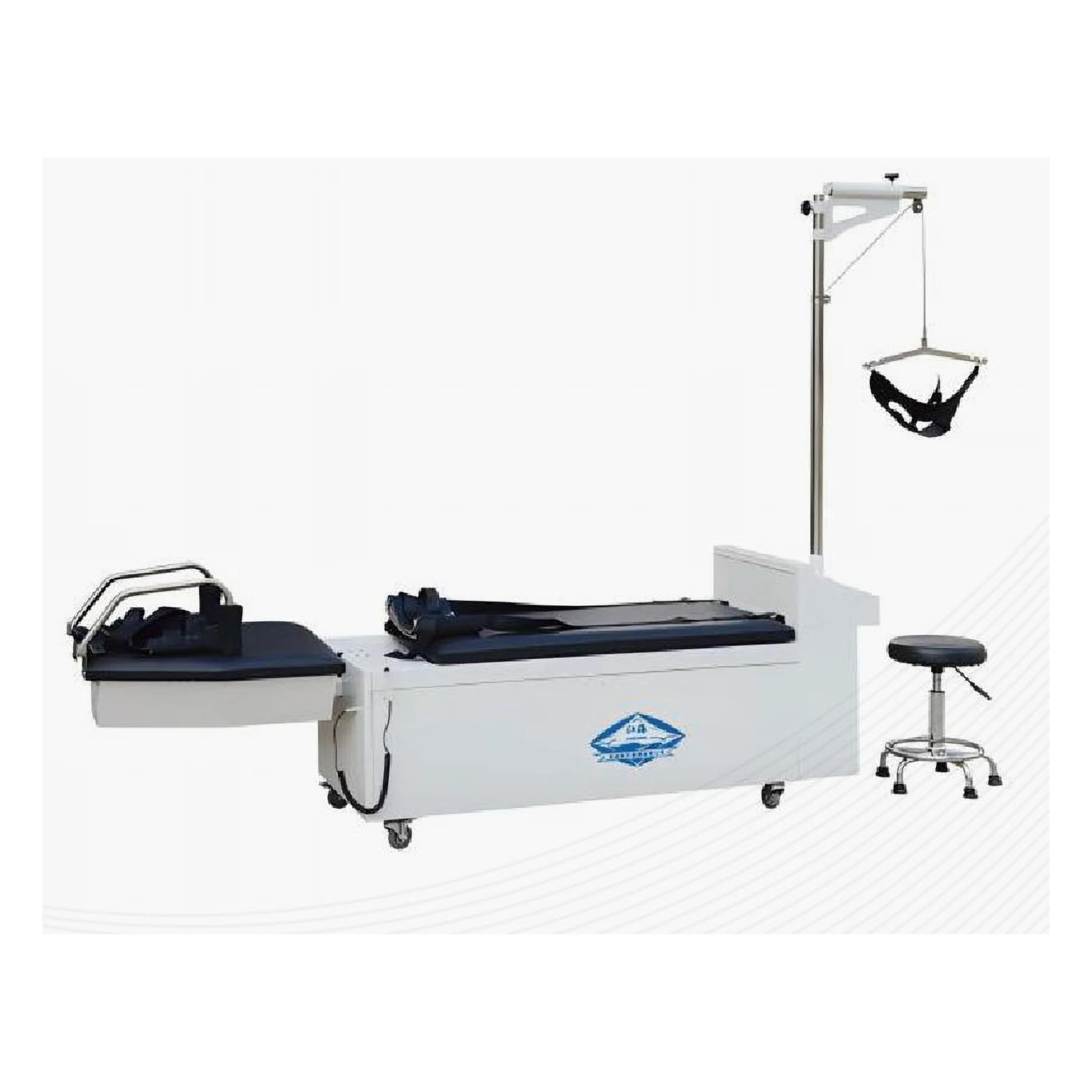

The console and cervical-support mast are positioned beside one end of the treatment platform, with the stool shown separately. Review the access needed around the console, the platform and the suspended support. Obtain a dimensioned drawing before allocating treatment-room space or planning equipment delivery.

YK-TR002 Specifications

Use the figures below to compare this configuration. Confirm the final drawing, measurement references and operating conditions with your quotation.

YK-TR002 Traction Table model specifications
Listed waist traction-force range	10–970 N
Listed neck traction-force range	10–294 N
Waist drive distance	0–200 mm
Neck drive distance	0–250 mm
Listed waist angulation endpoints	−5° ±2° to 28° ±2°
Listed rotation / swing angle	±25°
Listed traction speed	5–16 mm/s
Overall dimensions and patient load	Confirm for the supplied configuration
Controls, programs and electrical supply	Confirm against the supplied operating instructions

Before You Confirm The Order

Build the order around the exact equipment set and the space where it will be installed. Record the agreed configuration so that inspection, delivery and setup use the same requirements.

01
Have the responsible clinical team approve the intended equipment function and required control programs.
02
Confirm overall dimensions, permitted patient load, support interfaces, movement limits and emergency controls.
03
Request operating instructions, force-verification/calibration arrangements, maintenance requirements and market documentation.
04
Agree the supplied supports, stool, electrical configuration, installation, packing and spare-parts scope.

Compare Related Configurations

YK-TR001 Traction Table

A dedicated traction-table configuration with separately listed waist and neck traction capabilities and a control console integrated beside the treatment platform. Review its support layout and control requirements.

Compare Specifications →

Traction Tables →Rehabilitation Furniture →

Questions About YK-TR002

Request Your YK-TR002 Configuration Quote

Send the model, quantities, destination and required setup. We can prepare a configuration-based quotation for your project or distribution order, with packing and documentation requirements agreed before dispatch.
