What makes YK-OT400 different from YK-OT600?

YK-OT400 has a listed 2000 × 800 mm bed-style layout. YK-OT600 lists 1250 × 550 mm in its delivery-table configuration. Confirm measurement positions and support surfaces for both models.

Is the height adjustment range published?

A height range has not been established for this configuration. Request the minimum and maximum working heights and control arrangement with the quotation.

Does the listed load equal permitted patient weight?

Confirm patient weight, accessory loads and operating conditions separately. The listed safe working load is not a complete statement of allowable loads in every position.

What should I send for a YK-OT400 quotation?

Send the model, quantities, destination country, required supports and controls, documentation needs and delivery timing. The quotation should define the delivered configuration, packing, lead time, warranty and spare-parts scope.

Delivery Beds

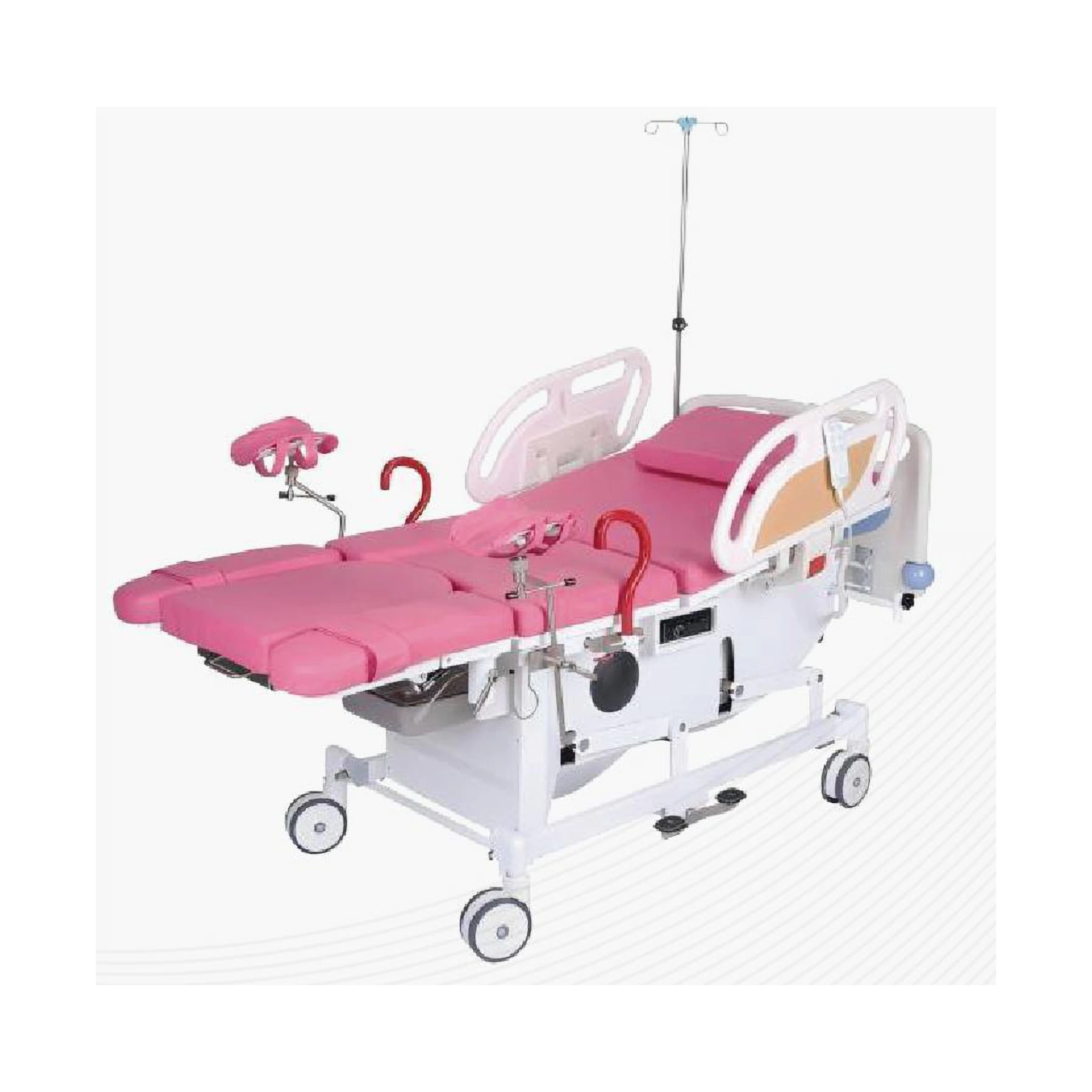

YK-OT400 Electric Delivery Bed

A 2000 × 800 mm electric delivery bed with a bed-style platform, side rails and a split foot-section arrangement. Compare its backrest and foot-section movements with your maternity-room requirements.

View Specifications

Configuration At A Glance

Bed-style platform

Listed overall length and width are 2000 × 800 mm. Confirm the usable support surface separately.

Backrest positioning

The listed backrest raised/lowered angles are 60° / 0°.

Split foot section

Foot-plate folding is listed at 40°, with an opening angle of at least 90°. Confirm the movement sequence and locking.

Review The Layout For Your Room

The bed-style layout offers a longer listed platform than the chair-format YK-OT600. It is an option to review when a project calls for a mattress-style support surface and separate leg supports. Confirm access from each side, the working-height reference and the complete delivered support set before deciding on the configuration.

YK-OT400 Specifications

Use the figures below to compare this configuration. Confirm the final drawing, measurement references and operating conditions with your quotation.

YK-OT400 Electric Delivery Bed model specifications
Overall length	2000 mm
Overall width	800 mm
Backrest raised / lowered	60° / 0°
Trendelenburg / reverse Trendelenburg	12° / 2°
Foot-plate folding angle	40°
Foot-plate opening angle	≥90°
Listed safe working load	≥150 kg; confirm loading conditions and permitted patient weight
Height range	Confirm for the supplied configuration
Power supply and controls	Confirm voltage, frequency, controls and supplied accessories

Before You Confirm The Order

Build the order around the exact equipment set and the space where it will be installed. Record the agreed configuration so that inspection, delivery and setup use the same requirements.

01
Agree the working-height range and the reference used to measure it, including mattress inclusion.
02
Confirm the foot-section movement, leg-support positions, rail operation and accessory-rail interfaces.
03
Separate the permitted patient weight from the total safe working load; confirm restrictions during movement.
04
Specify destination electrical requirements, cleaning instructions, maintenance, final packing and installation responsibilities.

Compare Related Configurations

YK-OT600 Electric Delivery Bed

An electric delivery-table configuration with a listed 1250 × 550 mm size and a 650–950 mm height range. Review the compact support layout, leg supports and controls for the selected setup.

Compare Specifications →

YK-OT700 Multipurpose Delivery Bed

A multipurpose delivery-bed layout with a 1900 × 600 mm listed size, a 680–930 mm height range and separate leg supports. Confirm the actuation method and supplied accessories for the order.

Compare Specifications →

Delivery Beds →Hospital Beds →

Questions About YK-OT400

Request Your YK-OT400 Configuration Quote

Send the model, quantities, destination and required setup. We can prepare a configuration-based quotation for your project or distribution order, with packing and documentation requirements agreed before dispatch.
