Elderly Care Beds

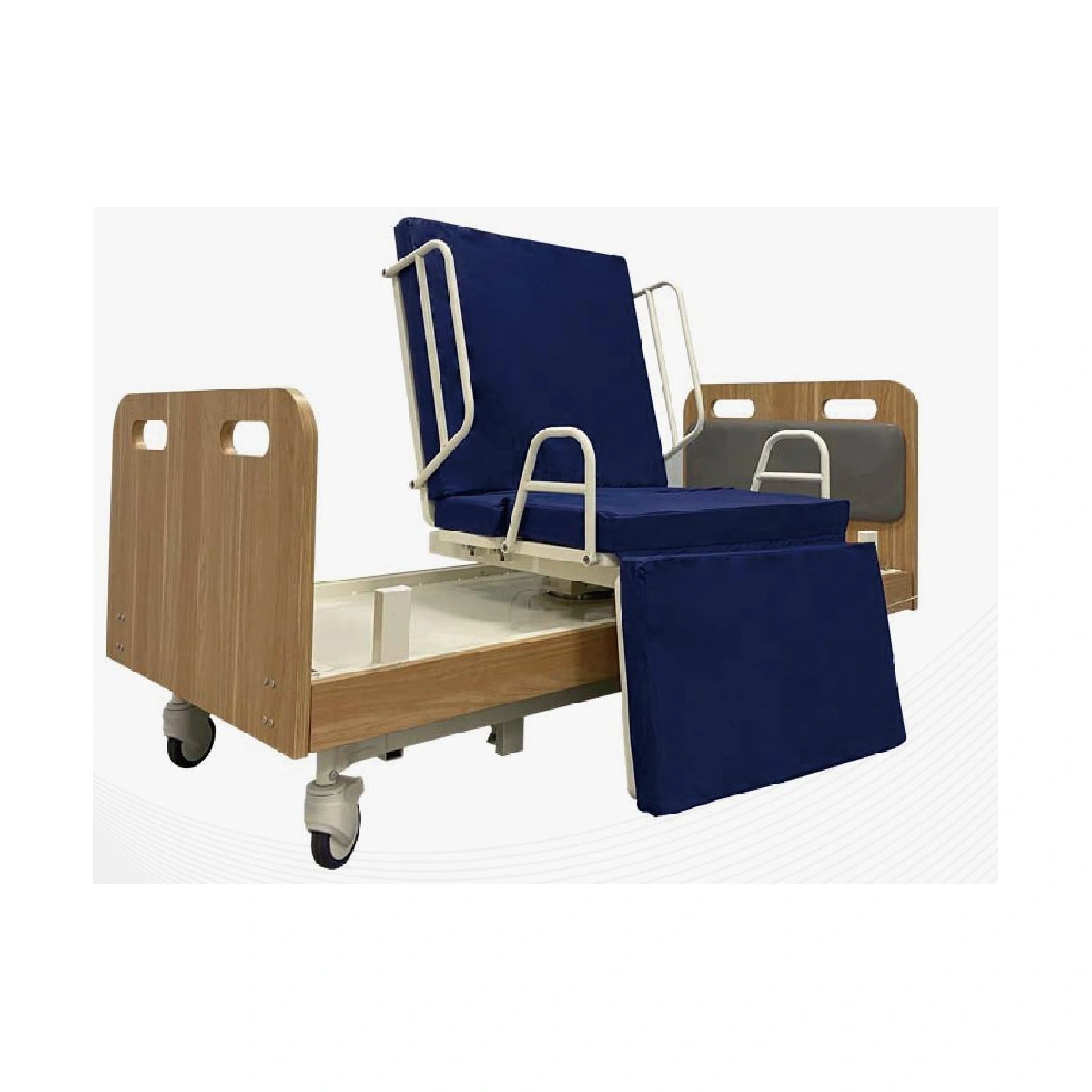

YK-E511 Electric Elderly Care Bed With Seated Layout
An electric care bed shown in reclined and seated configurations, with MDF wooden end boards and coated steel rails. Confirm the seated configuration, mattress fit and supplied controls before selecting this model.
Product Configuration
01
Seated configuration shown
02
Electric height and section adjustment
03
MDF wooden end boards
04
Coated steel side rails
YK-E511 Specifications
| Overall Dimensions | 2050 × 980 × 490–760 mm |
|---|---|
| Height Range | 490–760 mm |
| Backrest Adjustment | 0–75° (±5°) |
| Knee Section Adjustment | 0–40° (±5°) |
| Listed Tilt Positions | Trendelenburg and reverse Trendelenburg: 0–12° |
| Safe Working Load | 240 kg |
| End Boards | MDF wooden head and foot boards |
| Side Rails | Two coated steel rails |
| Casters | Four 5-inch braked wheels |
Confirm The Supplied Configuration
Confirm the measurement reference for bed height, usable mattress platform, side-board or rail operation, controller and destination power supply. Agree the included mattress, support handle, IV pole and other accessories for the selected configuration; pictured components do not define the supplied set. Request operating instructions, cleaning compatibility, warranty and spare parts. Safe working load is a total-load rating and must not be treated as permitted patient weight. Confirm the seated movement and mattress arrangement; do not assume a standing-assist or lateral-turning function.
Plan Your Project Order
Confirm model quantities, final packed dimensions and weights, handling and stacking limits, room access and handling requirements and required documents. MOQ, production lead time, warranty and spare-parts scope are quotation items.
Care Bed Model Questions
Request Your YK-E511 Quote
Send quantity, destination, accessories and delivery timing for this exact configuration.
