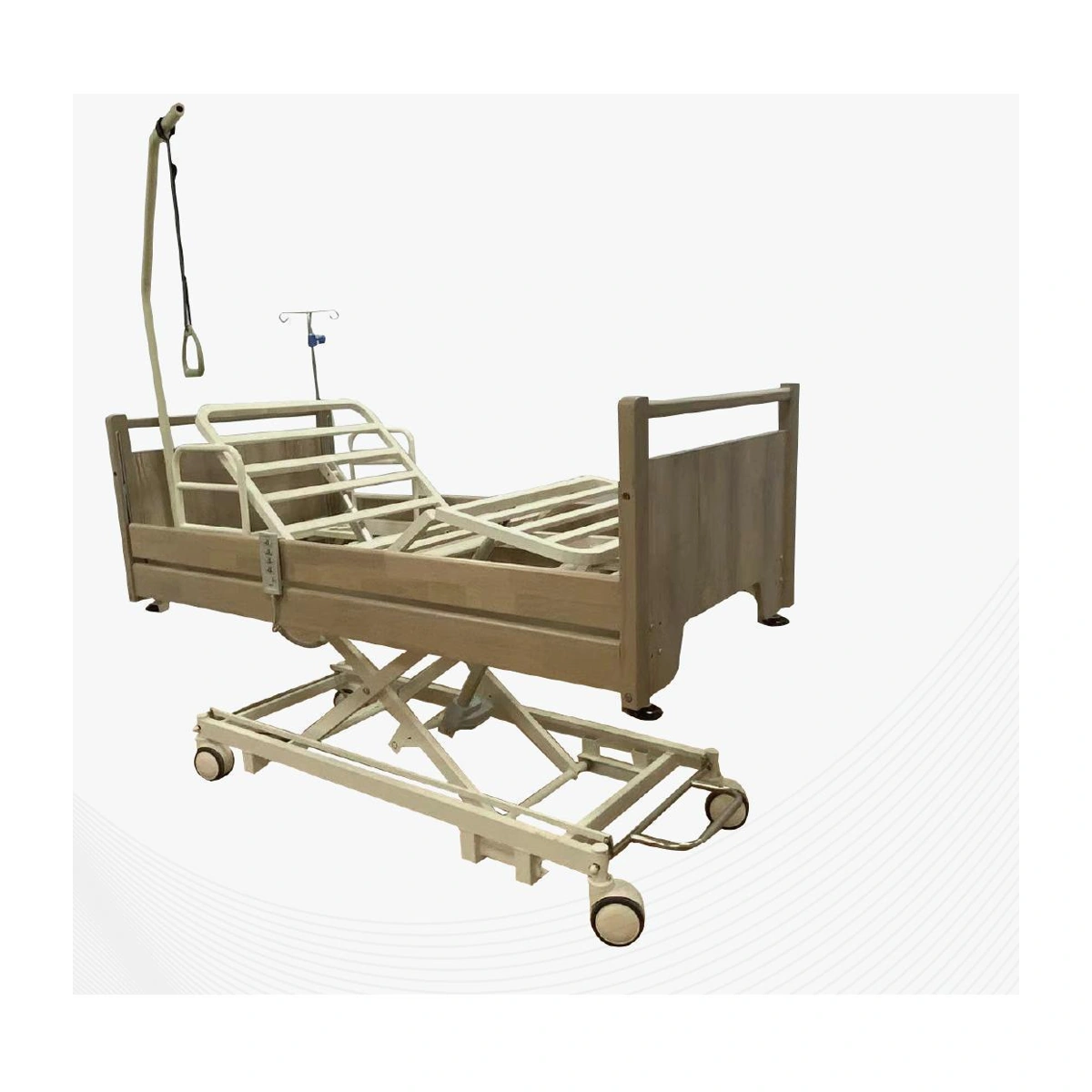

YK-E316 Three-function Electric Elderly Care Bed
A three-function electric care bed with detachable wooden end boards, backrest and knee adjustment, and height adjustment. Compare the frame and caster arrangement with the fully surrounded wooden model.
Product Configuration
01
Three electric adjustment functions
02
Detachable solid wood end boards
03
350–680 mm height range
04
Central wheel locking
YK-E316 Specifications
| Overall Dimensions | 2120 × 970 × 350–680 mm |
|---|---|
| Height Range | 350–680 mm |
| Backrest Adjustment | 0–80° (±5°) |
| Knee Section Adjustment | 0–40° (±5°) |
| Safe Working Load | 240 kg |
| Head And Foot Boards | Detachable solid wood |
| Side Boards | Two solid wooden side boards |
| Casters | Four 5-inch centrally lockable wheels |
Confirm The Supplied Configuration
Confirm the measurement reference for bed height, usable mattress platform, side-board or rail operation, controller and destination power supply. Agree the included mattress, support handle, IV pole and other accessories for the selected configuration; pictured components do not define the supplied set. Request operating instructions, cleaning compatibility, warranty and spare parts. Safe working load is a total-load rating and must not be treated as permitted patient weight.
Plan Your Project Order
Confirm model quantities, final packed dimensions and weights, handling and stacking limits, room access and handling requirements and required documents. MOQ, production lead time, warranty and spare-parts scope are quotation items.
Care Bed Model Questions
Request Your YK-E316 Quote
Send quantity, destination, accessories and delivery timing for this exact configuration.
