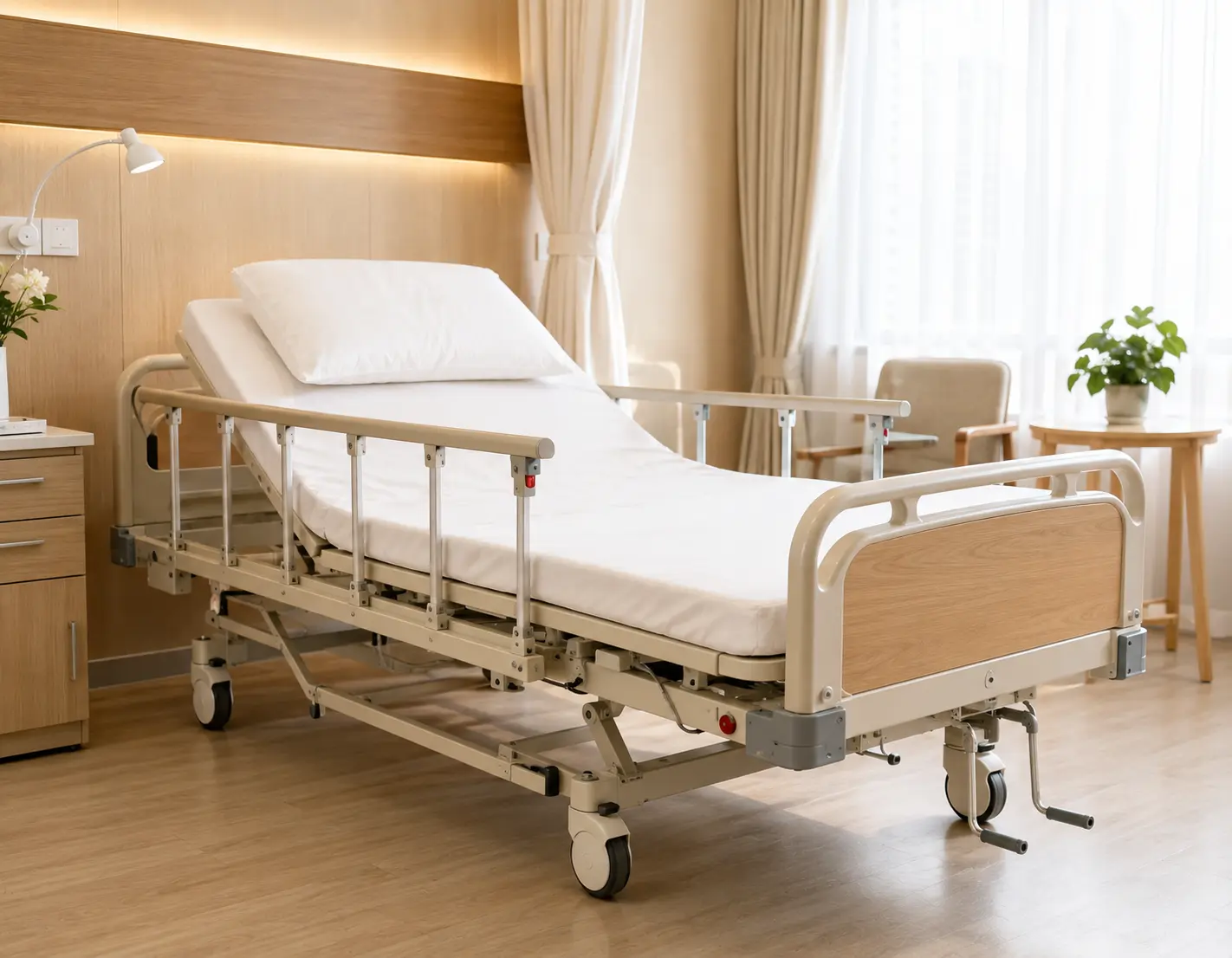

Manual Nursing Bed
Crank-operated nursing bed for cost-effective elderly and long-term care.
Nursing homes · Home care
Request Available ModelsProduct Category
CareFurnex supplies nursing beds for elderly care, long-term care, nursing homes, rehabilitation centers, and caregiver-assisted patient use.

OEM & ODM
Custom sizing, finishes, and branding for your market
Project-Friendly MOQ
Mixed-model orders for distributor stock and projects
Export-Ready Packaging
Protective sea-freight packing for international shipping
24h Quote Response
Fast quotations once requirements are confirmed
Product Types
Common configurations available for B2B orders. Final specifications depend on project requirements.
Crank-operated nursing bed for cost-effective elderly and long-term care.
Nursing homes · Home care
Request Available ModelsElectric-adjustable nursing bed for daily care routines and resident comfort.
Nursing homes · Long-term care
Request Available ModelsReinforced nursing bed designed for long-term, daily caregiver-assisted use.
Long-term care · Rehabilitation
Request Available ModelsNursing bed with integrated toilet option for bedridden care residents.
Nursing homes · Home care
Request Available ModelsCare Configuration
The nursing bed configuration should be selected according to caregiver availability, resident mobility, turnover requirements and hygiene routines.
| Function | Full Electric | Semi-Electric | Manual |
|---|---|---|---|
| Backrest | Electric, reference 0–80° | Electric, reference 0–80° | Hand crank, reference 0–80° |
| Legrest | Electric, reference 0–40° | Electric or manual, reference 0–40° | Hand crank, reference 0–40° |
| Height | Electric on selected configuration | Manual or model-dependent | Fixed or hand crank |
| Turnover | Electric, up to approximately 60° left and right | Manual turnover option | Manual turnover option |
| Toilet function | Electric or assisted option | Manual or assisted option | Manual option |
| Control | Pendant control | Electric control plus manual functions | Hand crank |
| Typical use | Higher-care long-term facilities | Cost-balanced nursing facilities | Budget-sensitive care facilities |
Reference Specifications
| Reference Configuration | Details |
|---|---|
| Versions | Full electric, semi-electric and manual |
| Overall dimensions | 2100 × 980 × 380–680 mm |
| Mattress platform | 2000 × 900 mm |
| Safe working load | 220 kg |
| Backrest | 0–80° |
| Leg section | 0–40° |
| Turnover angle | Up to approximately 60° left and right |
| Toilet opening | Reference 280 × 180 mm removable bedpan opening |
| Frame | Cold-rolled steel and ABS components |
| Full-electric motor system | Reference 5-actuator configuration |
| Reference motor noise | Under approximately 50 dB |
| Voltage | 110V or 220V, 50/60 Hz |
| Side rails | Foldable ABS side rails |
| Castors | Ø125 mm castors with brakes |
| Standard accessory reference | Bedpan, dining board, IV pole and lifting bar |
The 380–680 mm height range is used as the detailed reference configuration. Final height, turnover system and toilet mechanism are confirmed by model.
Reference configuration data is provided for model comparison. Final dimensions, components, packing details and available options are confirmed against the selected model before quotation.
Daily Care Functions
Turnover configurations can reduce the physical effort required for routine repositioning.
Selected nursing beds can include a removable bedpan and mattress opening for hygiene routines.
Position adjustment supports resting, feeding and routine nursing care.
Selected models can support safer transfer and more ergonomic caregiver working height.
Dining boards, IV poles and lifting bars can be matched according to care requirements.
Manual, semi-electric and full electric configurations support different staffing and budget conditions.
Export Packing
| Reference Configuration | Details |
|---|---|
| Packing method | Knock-down reinforced export carton |
| Reference 20GP loading | Approximately 26 sets |
| Reference 40HQ loading | Approximately 55 sets |
| Loading variables | Motor quantity, bedpan, dining board, mattress and lifting accessories |
| Final quantity | Confirmed from the approved packing list |
Reference configuration data is provided for model comparison. Final dimensions, components, packing details and available options are confirmed against the selected model before quotation.
Key Features
Each feature is selected based on real ward workflow, patient comfort, and B2B project supply requirements.
Nursing bed structure and finishes are designed for daily long-term care and nursing home operation.
Bed size, headboard finish, and color options support elderly care rooms, long-term care wards, and home care setups.
Manual or electric adjustment, side rail handling, and accessory layout support practical caregiver routines.
Foldable side rails, dining boards, IV poles, and lifting pole accessories are configurable by selected model.
Headboard, footboard, mattress platform, and side rails are selected for routine cleaning in care environments.
Care mattresses or pressure-relief mattresses can be supplied together with the nursing bed by configuration.
Bed type, color, side rails, accessories, and packaging are configured for nursing home and long-term care procurement projects.
Customization
Adjust this product to fit your market, facility, and project specifications.
Quality & Export
Practical B2B support from order confirmation to shipment.
Applications
Typical healthcare environments where these products are used.
Project Inquiry
Tell us your required model, quantity, destination country, and application scenario.
Share product type, quantity, destination, and customization needs — we'll respond with a tailored quotation.
Related Products
Other product categories commonly sourced together for healthcare projects.

Motorized multi-function beds with electric height, backrest, and leg adjustment options.
View Details

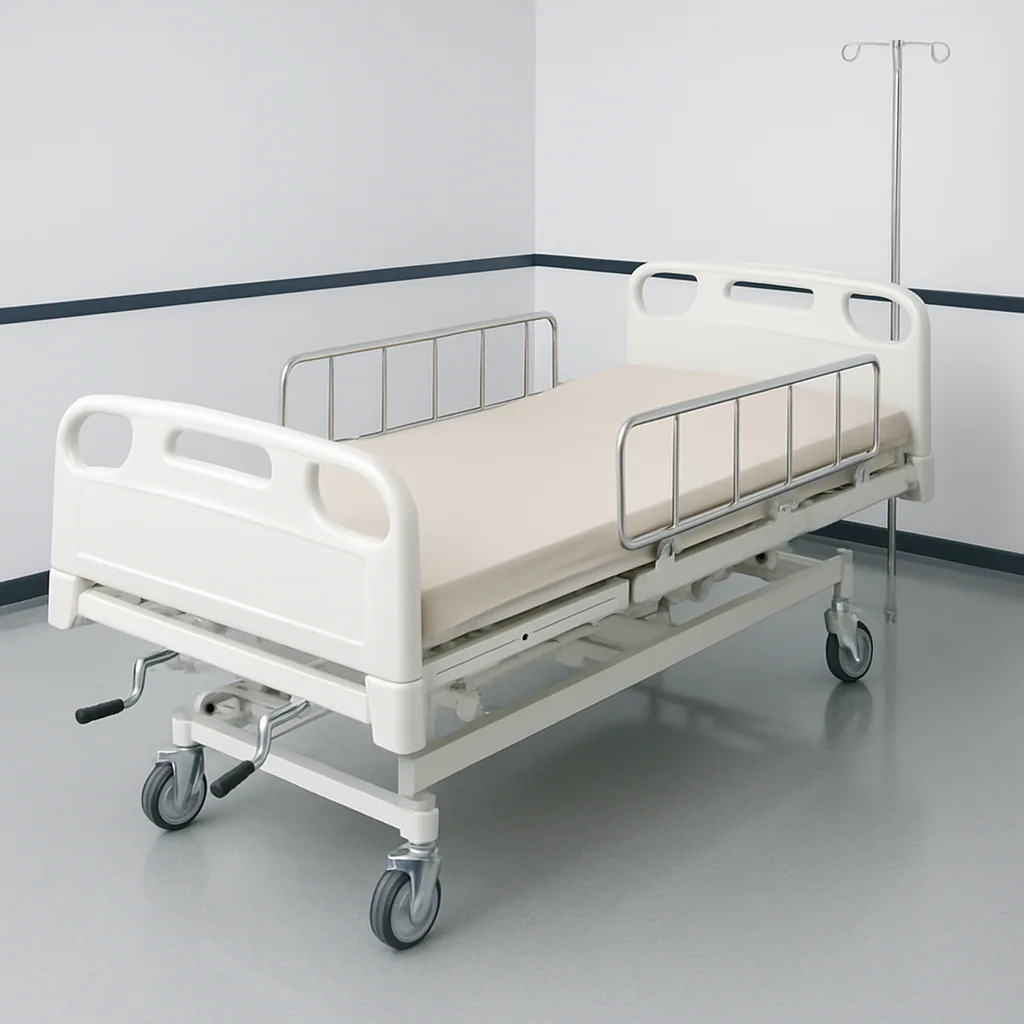

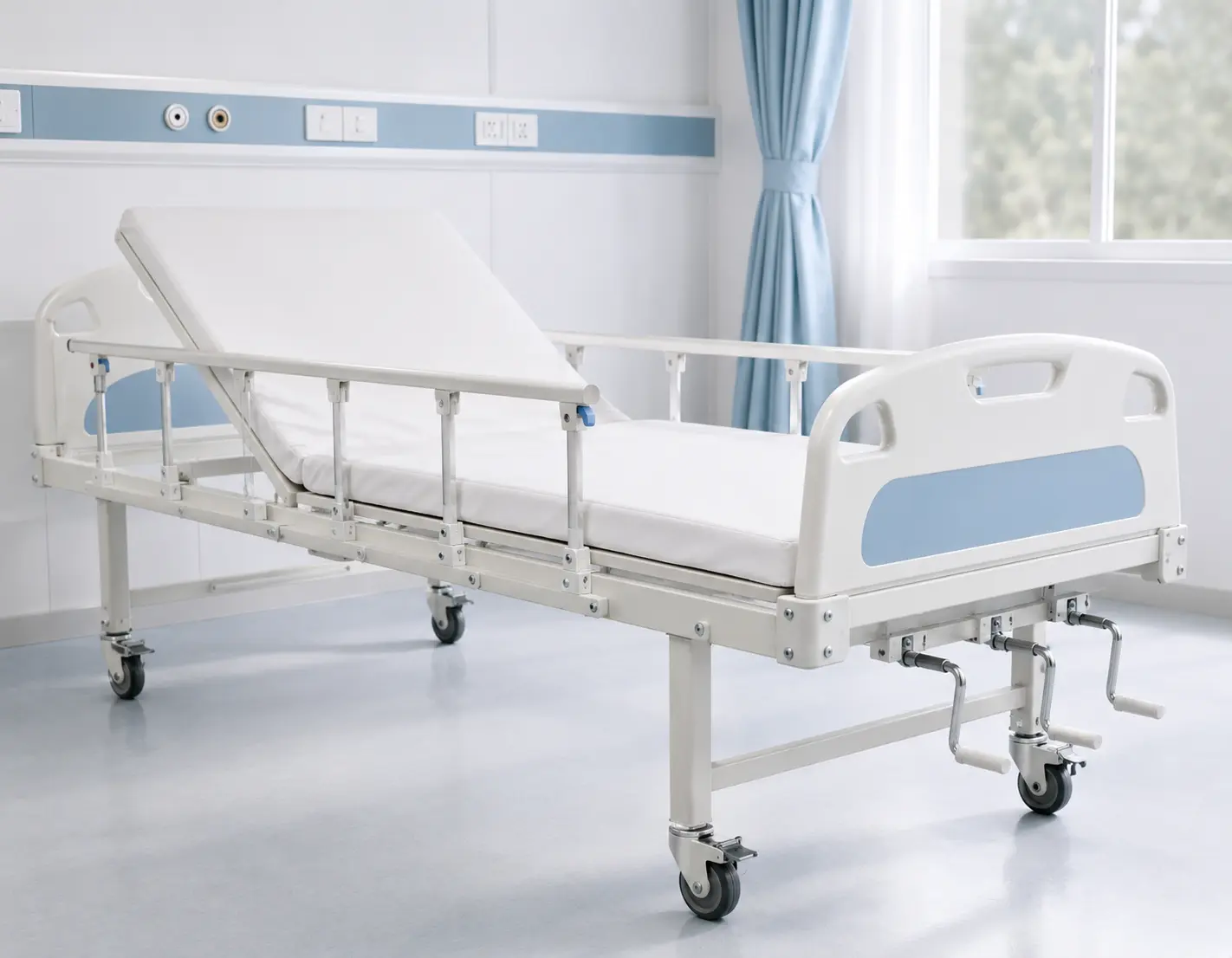

Crank-operated hospital beds for cost-effective patient care and general ward use.
View Details

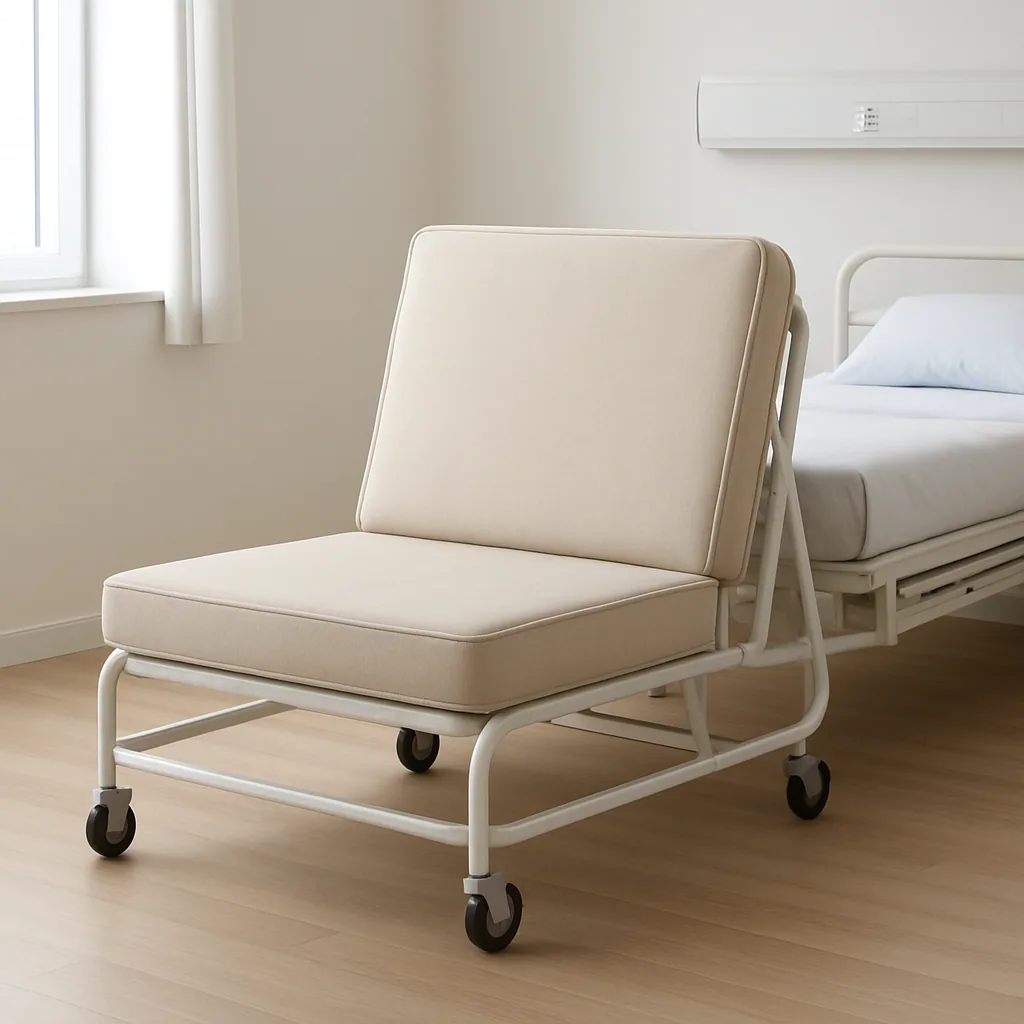

Foldable accompanying beds or chair-bed options for family members staying near patients.
